[PConline evaluation] Some time ago, AMD formally listed 4 CPUs of the Ryzen 5 series, 2 CPUs with 6 cores and 12 threads, and the price/performance ratio did not really have to be said. AM4 motherboards are basically finished distribution. The production capacity is gradually following. Let's test a X370GT5 from Biostar's RACING series today to see which Sharp CPU is suitable for use with.
Out of the box: standard LED cooling fan
Biostar X370GT5 Reference Price: Loading... Image Reviews Quotation Parameters Overview
The PCB design of the motherboard is exactly the same as that of the last year. Both of them are racing flag styles of the Racing series. The ATX form factor is after all the X370.
Adjustable LED lighting effect
The main board light emitting position is shown in the figure. There is a LED light strip near the audio module, and the CPU heat sink fins have an LED light, which can be flashed synchronously or fixed in color.
RACING light effect software interface
An LED cooling fan is provided with the motherboard
The fan needs to connect two power supply lines. One is the power supply of the fan shaft itself, and the other is the power supply of the LED lamp. After connecting the X370GT5, you can use the above RACING software to control the color of the fan.
Appearance details:
Onboard LED function keys
There are multiple buttons on the side of the motherboard, which is also useful for bare-metal platforms or users who try to light up before installing.
CPU power fins
RAING South Bridge Heat Sink
This design seems to have been used for a long time, very good-looking, but how to use two or three generations have to be a bit innovative.
â— expansion interface enough
PCIe expansion slot
As the X370 chipset motherboard, the biggest difference between it and the B350 is the support for multiple graphics cards, Biostar X370GT5 provides two long PCIe 3.0 slots to support AMD dual-channel CF, in addition to PCIe × 1 and PCI Slots, but also older PCI slots may be to take care of users who still have old devices.
M.2 SSD interface
Taking the PCIe channel M.2 SSD interface with a size of 2280, it is also the most mainstream size at present. It supports NVMe and has a theoretical bandwidth of 32 Gb/s, which can meet the requirements of most high-end M.2 SSDs on the market.

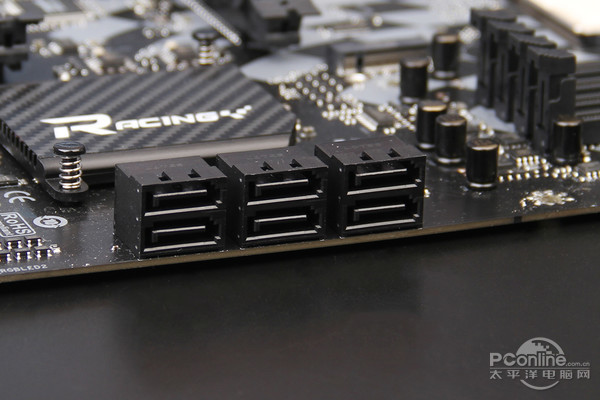

6×SATA 3.0 interface
Motherboard back I/O interface
Back extension interface is a bit less, after all, is the X370 motherboard, with more than a few USB interfaces to fill it not too much. Provides a PS/2 keyboard interface, four USB 3.0 interfaces, and a set of USB 3.1 A&C interfaces. In addition, there are two DVI and HDMI display output interfaces for the APU. The others are conventional network cables and audio interfaces.
Biostar X370GT5 is priced at 999 yuan, in a public X370 is relatively cheap, but in fact its configuration and B350 is not much worse, after all, X370 and B350 is the most significant difference is the dual SLI support, this X370GT5 SLI is not supported, and the expansion interface is also the same as the B350, but there are onboard LED lights & fan lights, it can be considered a plus point.
â— Disassemble: Professional HiFi Capacitance & Dual BIOS Design
CPU power supply module
The power supply module is designed for 4+3 phase. If it is not overclocked, even 8-core Ruilong will have no problem. However, the positioning of the board itself is not overclocking, so it is still just fine. Recommended for 6-core/8-core Ruilong without X suffixes.
4×DDR4 memory slots
Supports up to four 16GB, 2677MHz frequencies, 64GB memory is definitely enough.
RACING audio module
The audio part is Biostar's strength, and it also has electromagnetic shielding and professional HiFi capacitors to provide a superior sound experience, and the software included on the motherboard can be used to adjust the sound according to your needs.
BIOS switch
At present, many motherboards are designed with dual BIOS. The advantage of this is that you can have a backup when you flash the BIOS, making the motherboard more secure, reliable, and more playable. You can use one side of the BIOS to specifically test the BIOS. The BIOS will try to be fresh, while the other side will keep a safe and stable version.
Network card module
The design of the NIC protection chip has a certain degree of protection for thunder, excessive current, and so on. The REALTEK chip is used, and the price/performance ratio is relatively high.
Summary of materials used: material is not luxurious, law-abiding, as a slightly enhanced version of the ordinary B350 almost.
â— Theoretical performance test:
Test platform screenshot
The mainboard is an extension of the CPU. The effect on performance is whether it can provide a good environment for the CPU to work stably. The latest is the Ryzen 51600X, which is relatively hot, and GTX1080Ti.
â— Test description:
M.2 SSD: Samsung 960 Pro 1TB Graphics Colorful GTX1080Ti
Fritz Chess Benchmark
CineBench R15 x64
3DMARK Physics Score
3D game performance test:
Ghost Action Wildland Disk Read-Write Test:
AS SSD Benchmark 1.6
Most of the above software is used to test the performance of CPUs, graphics cards, and SSDs. The purpose is to test whether the motherboard can make the hardware mounted on it stable.
â— BIOS: Biostar graphic BIOS is more mature
Home
There are English and Chinese versions available. Currently, all branded motherboards on the market basically support Chinese and are very friendly.
advanced options
CPU parameters
USB support
Chipset options
Startup item
This piece should be the most commonly used for the user, with a good deal, does not require too much extra learning costs.
Security Options
Overclocking related options
Biostar X370GT5 is recommended to use it even more frequently. Here it is sufficient to adjust the memory frequency.
storage
Through repeated tests, you can see Biostar's BIOS design is becoming more and more mature, because there is nothing new in the motherboard CPU upstream, so their BIOS is also difficult to have a greater breakthrough and play space, enough to use All right.
â— Performance measurement: performance is stable
By comparing MSI's TOMAHAWK, it can be found that the performance of the two in the silent state is very consistent, indicating that Biostar X370GT5 can stably play the performance of all the hardware on the motherboard.
â— Frequency full load temperature test:
In the temperature test section, we mainly examined the problems of the CPU power supply of the mainboard. This part of the temperature is the place where the main board generates a large amount of heat, and it is also the key to the stability of the mainboard. We used the Fluke Ti25 thermal imager to test and recorded two data when idle (CPU, video card is empty) and full load (CPU full, video card is empty).
Idle (left), full load (right)
Thanks to the excellent digital power supply module, the temperature of the 95W Ryzen 5 1600X with full load can still be controlled at 45°C. In a motherboard, it is considered a very low full-load temperature, and it is very good. This temperature control is not simple. Give a thumbs up like!
â—PConline evaluation room summary:
Biostar X370GT5 Reference Price: Loading... Image Reviews Quotation Parameters Overview
Biostar X370GT5's positioning is also accurate, selling 999 is slightly higher than most B350, for users, spend a little more will be able to go on a X370, it seems pretty good.
With the motherboard also sent an LED light cooling fan, for those who like lighting effect, or like to fill the chassis fan, it is still very good.
The number of expansion interfaces is controlled in a sufficient range. The I/O interfaces on the back are a bit sparse and do not have a significant distance from the B350. Even the support of the dual-channel NLI SLI is not available, perhaps considering the choice. Users of this motherboard do not have dual card requirements. It seems that this is indeed the case.
It is recommended to use with a 65W TDP Sharp processor.
1, the motherboard presented cooling fan
2, affordable X370
3, power supply module temperature control super excellent
1, the number of expansion interfaces is slightly less
