This time there was another new series, the # installed series, due to the fact that the last time the "Razer Cannon" was loaded, and then there was a friend to find their local installed shop, and then there was a lot of installation process. Problems, and later I think I simply write about the recommended configuration of these installed devices and the installation period of attention, so that we can directly hold the content reference installed, so I opened this new series.
If there is a certain DIY ability, for example, the film will be replaced by their own mobile phone battery can be based on the content of their own optional accessories to assemble; if there is no DIY capabilities, but also particularly like a set of configuration, it is recommended to find a local or Taobao fly Installed shops, plus a manual fee to buy their own accessories, and then let them install. The price of the configuration slip is generally written at the reference price above the JD, and the actual starting price should be lower than the JD above (activity, etc.)
So now that the next set of this machine installed, as of now, if you do not count on the only release of the X299ITX monster king of the world, then this machine can now be regarded as the smallest, most powerful and affordable One of the steel gun platforms, and the main reason is that the market is currently the only X370 ITX model Biostar X370GTN, with the current fried chicken Ji Rui platform, performance or cost performance naturally superior.
Not much to say, the opening configuration directly on the price, the specific price for reference (0601 Jingdong reference price), accessories models for reference, the actual flexibility can be based on their own needs.
CPU: R7 1700/R5 1600X (Â¥2299)
Radiator: Herd TC12DX (Â¥269)
Motherboard: Biostar X370GTN ITX (Â¥919)
Memory: GEIL Fast DDR42400 16G Optional 1 or 2 (Â¥699-1398)
SSD: Transcend TS128GMTE850 (Â¥699)
Graphics: XFX RX580 Black Wolf Evolution (Â¥1999)
Power: XFX XFX XTR550 (Â¥579)
Chassis: Herd 215P Black (Â¥449)
HDD: Western Digital (WD) Blue Disk 2TB (Â¥429)
Total price: less than 90.4 million yuan (actual estimate less than 9K) to get 8 cores and 16 threads, 32GB RAM, suitable for both entertainment and work.
Biostar X370GTN ITX
In fact, I did not expect that Biostar’s board is currently the exclusive ITX of the X370 platform. In addition, although it is an exclusive board of ITX, the price is not as expensive as the ordinary board, so it is rare.
Biostar X370GTN ITX mini motherboard (AMD X370 / LGA AM4) 919 yuan Jingdong direct link
In addition to the lack of an M.2 plug-in location (plug-in wireless network card), the entire motherboard has almost no disadvantages. Post-MVMe Protocol M.2 still remains
CPU power supply
Memory slot section
Graphics slot section
Accidentally still supports external expansion RGB light bar, also in line with current trends
IO port configuration is unexpectedly "excellent", DVI/HDMI video port, Tpye-C port, etc.
Currently indispensable M.2 port, supports 2262 and 2280 SSD (SATA and NVMe)

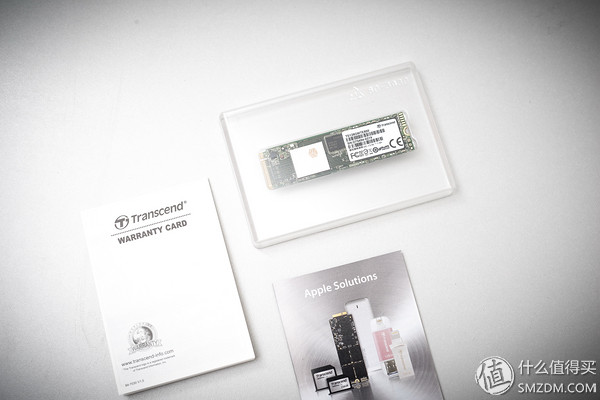

Transcend MTE850
The M.2 SSD of the MVMe protocol released by the veteran platform vendor.
The scheme adopted is Huirong SM2260 master plus 3D NANDMLC flash memory particles, which is regarded as one of the most dependable solutions. At present, although Intel uses sm2260, it uses its own TLC flash memory particles, which is one of the reasons for the price difference between the two models. .
Transcend/ Transcend TS128GMTE850 NGFF M.2 2280SSD Solid State Drive NVMePCIe699 Tmall Select Direct Links This model has a maximum of 512G, but the current state line seems to be only 128G of the shelves, and other new products so the price is slightly more expensive, but it is estimated that these days there will be 618 promotional activities, you can look at the next.
Official support management software SSD Scope
DDR3 cache
Magnesium Light nw817 3D MLC Flash Particles
Installation, there will be the actual measurement of this SSD
In the CPU section, the R7 1700X is used for the installation test. However, if the actual installation is installed, personally recommended construction can give priority to the R7 1700 or R5 1600X.
Memory, not overturning, but it can not get high frequency, so too lazy to toss with the pursuit of cost-effective students can see which of the recent large-capacity bar, and give priority to a single 16G instead of 8GX2 combination, after all, ITX slot only 2 A combination of 8GX2 upgrades will be more troublesome.
On the radiator side, the TC14S is chosen by the windbreaker. This is an interesting radiator. The dual-body six heat pipe, supporting the 14CM fan configuration, is actually a compact heat sink. In addition there is an estimate that many people will not notice the point is that the design of contact with the bottom surface is actually convex, early years on the heatsink convex bottom is controversial, when the Limin deliberately done this convex surface processing is also the player Tucao Polished into a plane, but the actual process is for the CPU surface itself is a concave targeted design, generally only the high-end radiator will be so "egg pain" plus such a process, indeed unexpected.
This machine is also a friend installed, so the radiator is his choice, although I think the wind chaser TC12DX price will be better, but people can not stand the appearance. The actual effect is really good after the equipment is installed, and the compatibility of the radiator is unexpectedly excellent. The memory, graphics card, and chassis will not block it.
The chassis part is my choice for him, but also one of the personal collection models, chasing the wind 215P.
This case actually has MATX version and ATX version, personally think that the smaller the design is more interesting, so I highly recommend him, the color is black, white and black, and finally chose the cheapest black, but the actual effect is As good as you think.
Herd (PHANTEKS) 215P black tempered panel Mini ITX water-cooled computer chassis (support ITX motherboard / 280 water-cooled / long graphics card / dust-proof with 20CM mute fan) 449 yuan 215P is chasing hot ITX water-cooled chassis, this For the side-through version. Continuing the tradition of PHANTEKS, providing water cooled players with the necessary configuration and space, the overall shape is relatively large and measures 230 mm x 375 mm x 395 mm and weighs 5.4 kg. Only support ITX motherboard, power supply structure, support high power long power supply, video card support length 318mm to 330mm (the longest long Jingdong direct link to encyclopedia
As an ITX chassis, 215P compatibility is very good, the entire installation process is basically not "egg pain", the only thing to be a little attention is probably not long power supply, and then the module line is best connected then installed.
The power supply is still the XRT550+ official silver-plated wire of XFX. Before I was able to install a lot of friends with my friends, the general reputation was quiet and not howling. This type of JD is often active and can care about the price and other activities, although the price itself is very good. About 500W for this set of ITX platform, it is just good to have some redundancy, set aside a little space to upgrade VEGA.
Also pay attention to the wind chaser when the 215P chassis when installing the power supply, remember that the module line power terminal part is also installed, and then install the power supply.
XFX rated 550W XTR550 power supply (80PLUS gold / full module / 5-year warranty / support back line) 579 yuan XFX XTR series 550W power supply can be regarded as the optimized version of the Rhine Yun scheme, adding a low load fan Stopping, the 12cm fan replaced the 13.5cm fan, also passed the 80plus gold medal, the nominal effective conversion rate of 90%, and the high conversion rate power supply of high-tech products. Double-panel, high-standard materials and LLC+DC-DC topology full-module design, 12V single-circuit design, 12V maximum 45A540W output Jingdong Direct link Encyclopedia
Graphics card is XFX's RX580 8G Crimson Edition, the retail frequency of the highest RX580, has done a review before hand, this time finally installed. In addition, because of the bitcoin market, the price of graphics cards has recently risen under the line, so there is a need for upgrades installed on the 618 directly to start more appropriate.
XFX RX 580 8G Crimson Edition 1430MHz/8GHz-1450MHz/8.1GHz 256bit GDDR5 Graphics 2199 yuan Jingdong direct link
The whole set of unexpected styles is just fine. In addition, the fixed board on the right side of the graphics card can be used to install a 2.5-inch device on the one hand, and on the other hand, it has a certain diversion effect on the air intake of the graphics card, so it is recommended to keep it (itself is removable)
After the installation of the whole machine, it is slightly better to manage the line, and there is no special way to sort it out. Even without a tie, you can achieve this.
The location of the back SSD is very convenient for disassembly and replacement. In addition, the machine is not equipped with HDD, because this machine is used for work, data storage is an external network storage to get
Side penetration effect, all basic accessories can be seen
In addition, the dustproof net setting of this chassis is also the kind that can give praise.
The whole machine is actually small
Since the 1700 had not yet arrived during this time, I took my 1700X test first, and the performance of the Ruilong platform, I believe we have been brushed several times, so I do not specifically explain it here.
After this machine, the main function is also the "productivity tool", so the choice of Ruilong platform, in the latter rendering is still more advantageous.
The Transcend MTE850 is focused on testing because it is a new product.
This hand is 128GB, if 256GB or 512GB, the performance will be more powerful.
However, although it is 128GB, the measured performance is also very good, especially 4K data.
Graphics score
Placement effect when testing
In general, the camera of this program is very cost-effective, and its appearance is low-key and menstrual type (see the appearance to know). If you play the game, then the video card will continue to be upgraded, and other accessories will not be used for 3.5 years so esay. .
The Chaser 215 Although this chassis is not expensive, but the overall installed experience is very good, the appearance of texture is also considered outstanding, if there is any need to improve the area, probably also hope to be able to add an SD card slot , nothing more; As for Biostar X370 ITX, is also cost-effective, there is no rollover, the only regret is probably M.2 card slot, although you can use the USB port card to get.
