Not only the immediate performance, but also the color and faith - hand-made graphics luminous back plate

After waiting for Sotheby's ribs and rice for nearly a month, there is still no goods. Given that two G100 960 G soul SLIs were used before, Gengsheng G Soul Series gives me a good feeling, so the first few days of angrily started to raise GTX1070 G Spirit. .

This card has good performance and heat dissipation, but unfortunately the card looks more ugly, especially the "soul" word on the backboard. The previous generation was just a "soul" similar to the seal, and this generation made a big difference. The white "soul" is really ugly and it seems to have to do it yourself.

My idea is to add another piece of acrylic directly to the original back, and put the LED strips in the middle of the acrylic. This only needs a few tens of dollars to make a glowing backplane.

If you think about it, you will measure the size and then find Taobao to cut the acrylic. The efficiency of Taobao shopkeepers and couriers was quite good, and they moved from Anhui to Guangdong every other day. Xiao Bian said that to connect the goods, give a Taobao search link.

The required acrylic is a backplane body, and the small pieces are used to pad the middle light bar.

The 2mm upper cover I used and the 2mm shim plus +1mm bottom cover, plus a thick double-sided tape, seemed to be thick.

In fact, the best thickness should be 1mm cover + 3mm gasket + 1mm bottom cover, 5mm light belt feel more appropriate.

Put all the gaskets on the cover. Here I use the 1mm thick 3M glue that Ma Yun bought. I just got the feeling that it would be very difficult to clean the glue. After trying it out, I found the character is very good, and I knead it casually. No glue left. However, I still recommend using the above-mentioned thickness + thin double-sided tape, but the thickness can increase the light-emitting area, or do you like it.

The two small pieces at the tail were originally intended to fix the position of the LED light bar. Later, it was found that the light bar itself absorbed acrylic, and did not tear off the glue behind the light bar. The bottom cover was very stable.

After sticking to the gasket, I started to stick to the front, and it's fine to play as I like it.

I used the kind of carbon fiber film that was used before, the glossy one. After picking three kinds of cuts, they are arbitrarily stitched together, and the feeling is still very monotonous and dug a lightning in the middle. . Next time I go home and use my family's cutting plotter to engrave a cutout of my head and change it. .

Sticking to the ROG's beliefs, the forcing moments went up.

The rivers and lakes upload a good sound card quality, N card speed fast, in order to prove that the N card is also a sound quality, so they manually add a Dolby 3D sound effects and side B. .

Then continue to use a thick 3M double-sided adhesive around, ready to stick the bottom cover

Put the light bar to the desired position

Then close the bottom cover

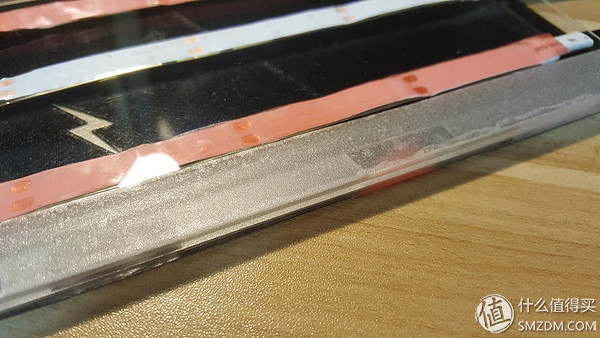

The edge is also the side that needs to emit light, stick it with a frosted glass film with adhesive, this will make the light soft and not dazzling.

If you buy it on Taobao, pay attention to whether it has adhesive, because many glass films are glue-free.

Finally, with the original back part of the graphics card, I used a thin 3M double-sided adhesive + carbon fiber film, because of fear that 3M adhesive glue on the back of the graphics card is difficult to clean.

Then stick on the power on the machine

This backplane I think is a lot better than before, but personally there is a personal favorite style, and later put the eyes of the prodigals on the perfect, ah, and then put my head up to light up. Looks like a good match with the eyes of the prodigal. .

Finally, we must pay attention to the LED light bar will be hot, may increase the back of the heat , but my video card does not seem to change at all, standby is still maintained at 33 °.
