To some extent, it can be said that "technology makes life more lazy." Clean robots are born for laziness, and sweeping the floor has come again. The most famous in this area is iRobot. Proscenic of this review is also very famous. This is a Taiwanese brand. Well, not much nonsense, we are out of the box test it.
There is no need to read the box, open the box, and everything is here.
We took out the things one by one to look at, a blue microfiber wet wipe cleaning cloth used for wet rubbing, a white microfiber dry rubbing cleaning cloth for dry rubbing, and two cleaning cloths of good quality.
When cleaning the floor, the cleaning cloth needs to be fixed on the mopping robot. How to fix it? It depends on professional pallets, of which the green ones are used for dry cleaning cloths and the other ones are wet ones.
Wet wipe fixed a soft plug on the pallet. After opening, we can see a water storage tank. We need to pour water from it when it is wet. The water in the water tank will seep through the middle white point.
The efficiency of the mopping robot is not high. In the route selection, Proscenic's mopping robot has an indoor navigation system, which will make the mopping robot line more efficient.
This navigation box is rechargeable, this can not be done to facilitate the United States? Is it really okay to show two wires?
The navigation box and the host are charged through a 12V, 1A charger
How does the navigation box work? This is similar to GPS and the principle is shown in the figure below:
There is a point here that we need to quit. We often equate GPS with navigation, and verbally say that there is nothing wrong with it. However, official propaganda and explanations also say that GPS has a big problem and it is not rigorous. GPS is the abbreviation of the English Global Positioning System (GPS). This navigation box is just the same as the GPS principle. It has nothing to do with other aspects. You can say Propsenic Positioning System (PPS) or anything else. The word GPS should not be used. Okay.
Next, look at the main body of the mopping robot. The appearance of the piano paint is bright and beautiful. The shape is mellow, the front is light and heavy, and the front is flat and the back is curled.
In front of the host there are 3 lights and 3 keys (the bottom is the power button, the oval water drop is a wet wipe, and the other is a dry erase key)
The front strip is used to buffer the force that hits the obstacle and can be taken off.
We assemble things and carry out an actual mopping test
In order to test the sweeping ability of this mopping robot, I created a simulation test site with common wires (whether it will entangle or affect the course of travel), a rag, a bad stool (don't Tucao this bad stool, I'm fine Easy to find, mainly to see the height of the stool under the chance will jam it), and the trunk separated by two small empty space to see if it will be cleaned.
The ideal cleanliness routes and methods are shown in the figure below, but they may differ depending on the actual situation.
What is the specific cleaning process?
Although the experimental scenarios and props are not ideal, they can still explain the problem. The mopping robot cleans up where it can be reached without leaving dead corners. Through the video, we can see that the small space on both sides of the trunk is not cleaned at the beginning. Personal guess is that the interior of the room should be the last navigation. It was determined that the area had not been cleaned and cleaned again. In the cleaning process, the noise is relatively large. To clean at night can eliminate this idea. General wire, wipes (or paper, plastic bags) and other things will not affect the sweeping robots, and generally will not be stuck (heavy things such as sofas are still to be tested)
If you meet the stairs when cleaning, will you fall? Facts have proved that it will not fall, this is very good, the principle please see the dismantling behind.
After a total of two trips, it took 28 minutes. The water in the sink has disappeared. There is no indication when the sink is empty.
Dismantling
Proscenic's robots are well dismantled and the structure and principle are not complicated. Here we take a look and we can understand. Remove the 5 screws at the bottom to see the internal structure:
Internal alignment and layout are relatively regular
The location of this well-shaped triangular pyramid structure is linked to the "GPS" part of that navigation box, and smart route selection depends on it.
If a robot encounters an obstacle such as a wall during the advancement, the frontmost strip will buffer the impact caused by the collision, and then the front panel displacement caused by the collision will cause the spring to stretch. Finally, this information is used. Pass the switch to judge the chip.
There are two small cylinders that can be pressed at the bottom of the mopping robot. Many people wonder what this is. You have watched the anti-drop video in front of you. Did you find that when the mopping robot only probes a small part of the body, it can be determined that the front is vacant? It is based on this realization.
Let's take a look at this principle. We press the contacts on the bottom of the machine to have a long strip of tabs. Follow the position shown by the red square in the figure. According to the position of the flap, we can judge whether the bottom contact has been left floating. This information is sent to the chip and combined with other information to comprehensively determine the route of travel.
The device intelligence is determined by the program and is executed by the processor. The processor is like the brain of the smart device. The mopping robot is no exception. The ARM chip is on the back of the card. We need to remove it or flip it over. Can see.
The back of the mopping robot is equipped with heavy metal blocks. Why does the following become aluminum plates? Of course this has no effect.
Lifetime

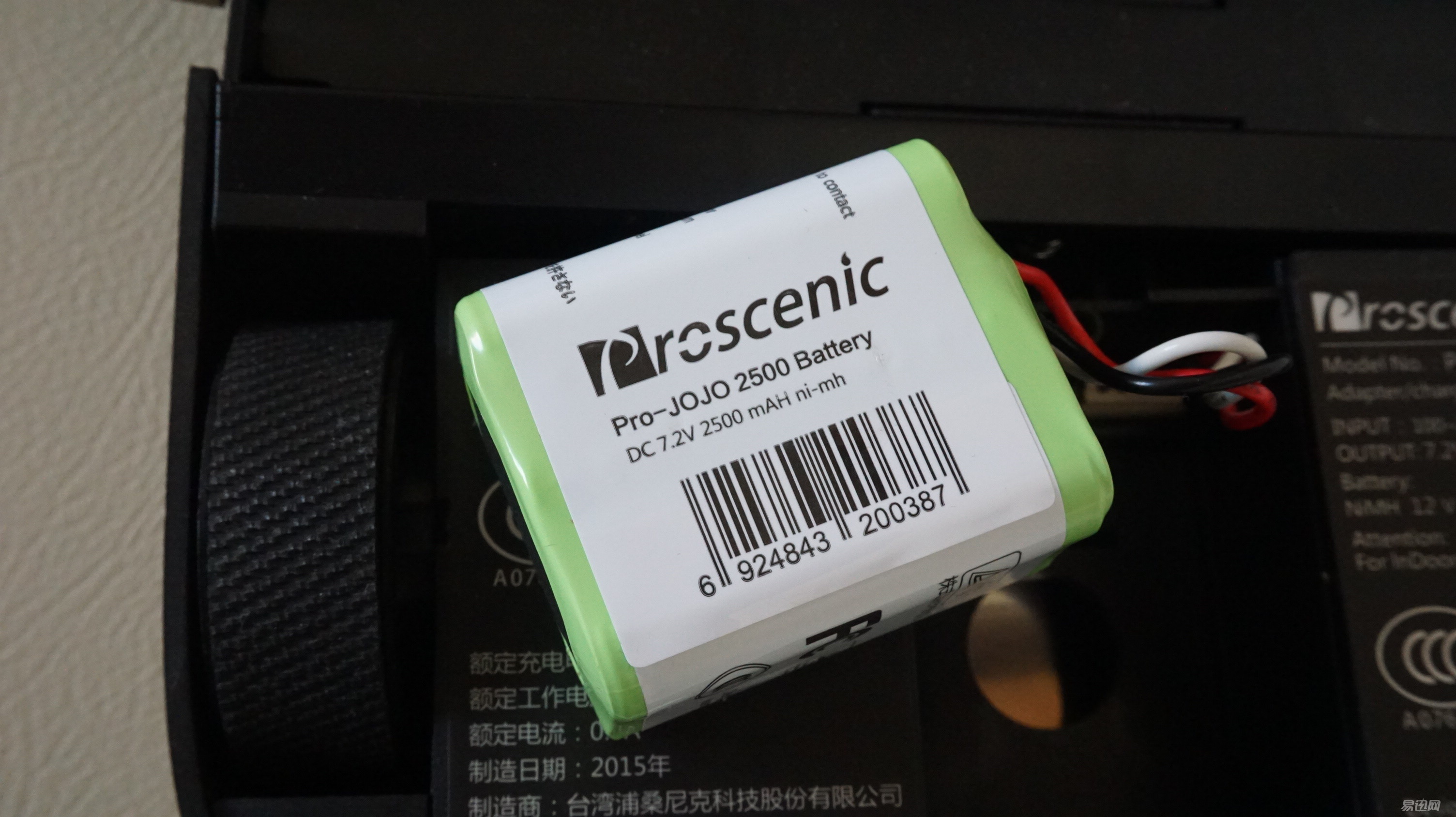

The mopping robot is equipped with a 2500mAh battery. The actual test of the wet trail's battery life is 2 hours and 19 minutes, which is similar to the promotion.
Is this battery replaceable? If it is a more convenient point of exchange, it is better to fix it.
In addition, whether this charge can be changed or not, it is better to change to automatic return charge. It should not be difficult to implement the navigation system itself.
to sum up:
advantage:
The cleaning efficiency of this sweeping robot is still very efficient because of the presence of navigation, and it will not leave a dead end; it is also smart to meet the steps and will not continue to move and cause a drop; it is more affordable than the price of iRobot, but also workmanship It is also quite good.
Disadvantages:
The noise is slightly louder. Since the noise is so large, I wonder if I can add an option to play music. When wet, the water stored in the storage tank is less, and there is no hint of inconvenience caused by the amount of water. It is impossible to make an appointment and remote control, and it is not possible to return home automatically. Charging; this Proscenic mopping robot is just like the iRobot 380. The principle, structure, and wiper are almost identical.
