The new 48-inch millet TV 3S all-metal fuselage, Samsung original screen, a collection of four major licenses on a large number of online on-demand content these points of purchase make this TV at the time of release to make eye-catching, and with the 1999 yuan price, it is For many young users to feel the cost-effective place, which shows that Xiaomi enters the living room big screen entertainment determination.
So, what about the actual performance of this 48-inch millet TV 3S? Here we gradually understand the TV in terms of appearance, quality, performance and content.
Today, TV is still the same big electric appliance that is indispensable in the living room. However, the function is no longer so simple as watching the program. It is an important display of the style of the living room. Therefore, the value of the TV has become the user's TV product. One of the most important reference elements.

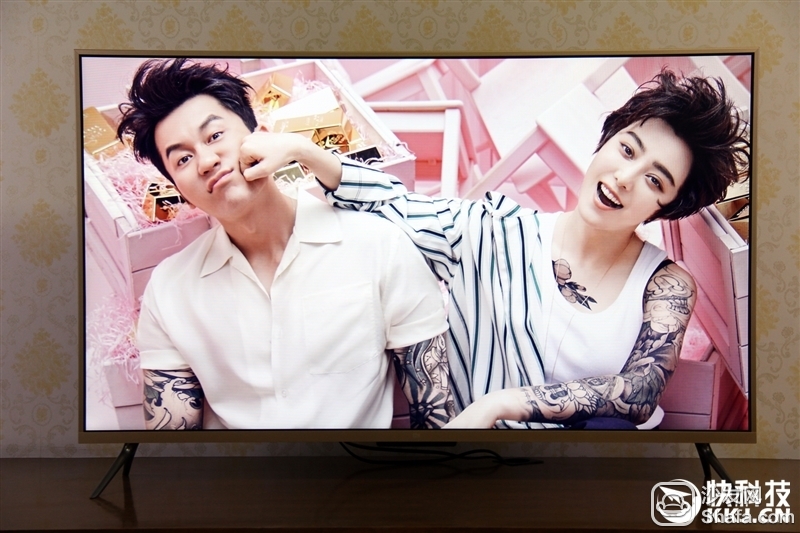

We have learned through previous real machine open box tours that the 48-inch millet TV 3S uses a similar design language to the 43-inch version of the same family, including all-metal fuselage and simple brackets.
This is exactly the same product as the 43-inch version, so it is inevitable that people want to put the two TVs together for comparison.
According to official product data, the 48-inch millet TV 3S uses a 7.5mm gold-colored aluminum frame and a brushed metal back panel. The bending rate of the entire TV is lower than 1.5%. The thickness of the upper end of the TV is only 9.9mm. The 43-inch version remains the same level.
Although you can't see much difference between the 48-inch and 43-inch versions, the 48-inch millet TV 3S is still more advanced in terms of details, such as chamfered metal frames and all-metal brackets. The 43-inch version is even more impressive.
If we say that the above-mentioned flat-screening is somewhat pale and incapable, then we will have to use the 43-inch version to make it appear on the same platform as the 48-inch version of the millet TV 3S. It will be more intuitive to see the difference in appearance details.
↑↑↑ 48-inch model is still apparently larger than the 43-inch version
The border of the ↑↑↑48-inch millet TV 3S is chamfered and the details are more abundant than the 43-inch version.
The 48-inch version of the millet TV 3S uses a more compact all-metal simple bracket, while the 43-inch version uses a black plastic bracket.

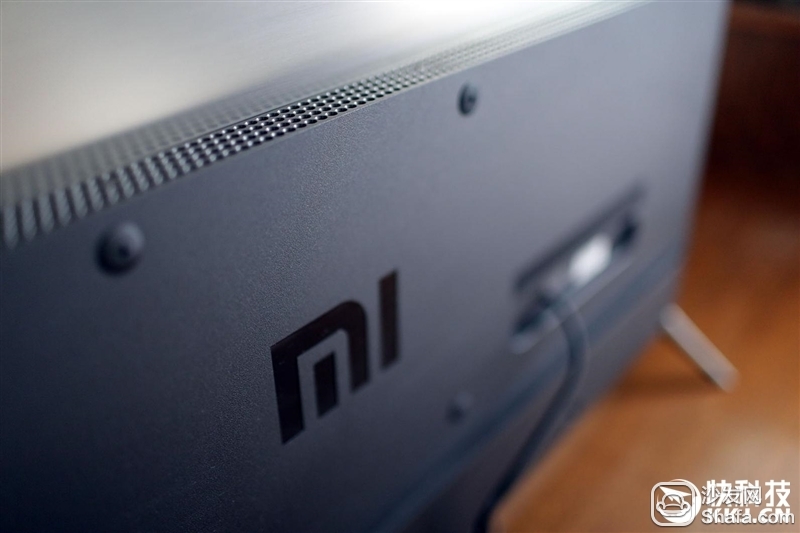

The 48-inch millet TV 3S has a metal brushed back design on the back and a common black metal back plate on the 34-inch screen. The 48-inch model is the perfect match for both the visual experience and craftsmanship.

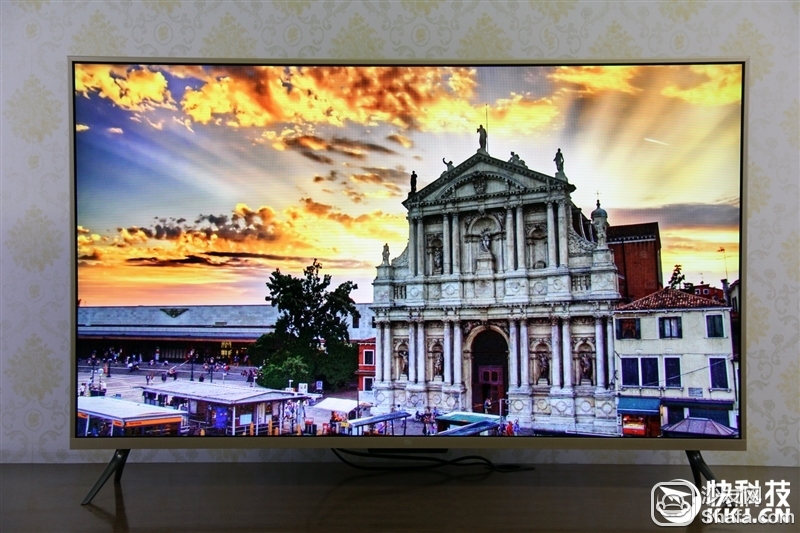

When it comes to the value of a TV, in addition to the overall design and details such as the borders and brackets mentioned above, the screen also occupies a large proportion, and the screen can be said to provide the user with the viewing experience The core, the most intuitive part.
This time, the 48-inch millet TV 3S uses an original wide-angle full-HD screen from Samsung, which is different from the 43-inch AUO/LG screen.
It is worth mentioning that although the screen has only the highest resolution of 1080p, it has not reached the more popular 2K or even 4K level, but with the help of the official announcement of the MACE-Pro3 UC third-generation high-definition quality engine and including UCNR Chaoqing Noise enhancement, DB dynamic decompression trace, DM mosquito killer, UCDE detail reduction and IHC independent chroma control, ICC independent saturation control, CTI color sharpening enhancement, DLC dynamic brightness control 12 quality enhancement techniques With 10 color enhancement technologies, the actual perception of the 48-inch version of the millet TV 3S can be said to be very delicate.
↑↑↑ 48-inch millet TV 3S supports 12 quality enhancement technologies
↑↑↑48 inch millet is 3S support 10 color enhancement technology
Another difference is that the 48-inch version of the millet TV 3S does not use side-entry backlights, but uses a bottom-entry LED backlight that was also developed by Xiaomi itself.
This design helps to reduce the thickness of the body while ensuring the brightness and uniformity of the screen illumination. The following is a test of the display effect of the 48-inch millet TV 3S screen by professional screen test software.

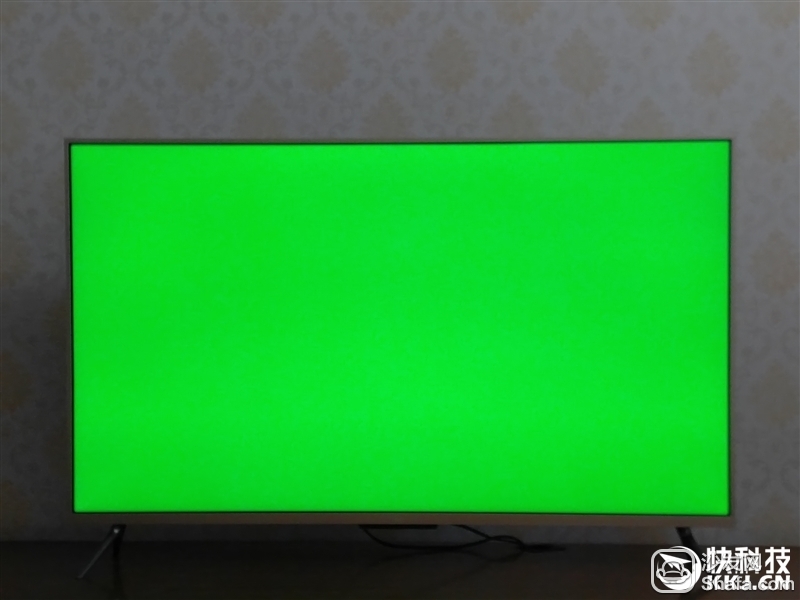

After testing several solid-color pictures such as red, green, blue and yellow, we did not find any dead pixels or bright spots on this 43-inch screen.
In terms of backlighting, Xiaomi TV 3S adopts a self-developed bottom-entry LED backlight, and evenness control is also in an ideal state. There is no obvious bright area or dark area, which lays a foundation for a good viewing experience.
It is worth mentioning that the 48-inch version of the screen has a static contrast ratio of 4000:1 higher than the 43-inch version of the LG screen (1200:1) and the AUO screen (3000:1). Both have the same viewing angle and response time, which are 178 degrees and 8ms, respectively.
The next few photos were taken during the grayscale and gamma testing of the Xiaomi TV 3S. This test mainly embodies the screen's ability to restore the color truth and the brightness of the screen. These factors will affect the details of the screen. Show.
Finally, we still need to give some advice on viewing. The best viewing distance for the previous 43-inch model is about 3 meters. Small living rooms and ordinary bedrooms can all be competent. When the screen was enlarged to 48 inches, the recommended viewing distance also increased to 3.8-4.0 meters. This means that this TV is more suitable for a living room of about 120-130 sq. ft., which can be placed and wall mounted. If the distance is too close, it feels even more shocking, but after a long time watching, there will be obvious fatigue, so it is not recommended to purchase it by the sophisticated home users.
After speaking of the appearance, it was the turn to talk about the inside. From the hardware information given by the official, the 48-inch version and the 43-inch version of the new 3D family of millet TVs have the same configuration specifications and carry the Mstar 6A908 processor ( Quad-core 1.45GHz A9, built-in 4+2 core Mali-450 GPU), supports 1080p 60fps H.265 10bit hard-coded.
In addition, built-in 1GB DDR3 dual channel memory, 8GB eMMC 4.5 fuselage storage, 2.4/5GHz dual-band Wi-Fi, support BLE 4.0 low-power Bluetooth 4.0, running Android-based MIUI TV system.
The back of the camera is provided with two USB (USB 3.0 and USB 2.0 each), two HDMI, optical digital audio output (S/P DIF), AV input, CCTV input interface and standard RJ45 network cable interface.
Prior to the actual experience of the 43-inch version of the millet TV 3S, the above-mentioned hardware configuration can only be regarded as "enough for performance", and when we experience the 48-inch version of the model, the entire system is still running to show its strength. UI scrolling, content playback, and App startup are all smooth and there are no issues such as crashes, stucks, and flashbacks.
PS: If you want to have a more intuitive understanding of the millet TV 3S hardware performance, welcome to watch our actual demo video (video portal)
As one of the largest appliances that use frequency and time at home, the power consumption of TV is also a problem that cannot escape. In the face of large-size TVs, users become more sensitive to power consumption.
The power consumption given by the 48-inch millet TV 3S official is the same as the 75-inch version. However, in the actual test, 48-inch version of the power performance is still slightly higher than the 43-inch version, but taking into account the increase in screen size, such changes are acceptable.
↑↑↑ In standby mode, the 48-inch and 43-inch models have the same power consumption of 8.5 watts. According to this standard, even if the standby time is 20 hours per day, then only about 5.1 kWh will be consumed in 30 days per month.
è¿è¡Œ The operating power consumption is about 23 watts when the screen backlight brightness is 0%
è¿è¡Œ When the screen backlight brightness is 50%, the operating power consumption is close to 40 watts
When the screen backlight brightness is 100%, the operating power consumption is 56 watts.
The article is written here. The experience of the appearance, hardware, and basic performance of the 48-inch version of the millet TV 3S has all come to an end. But don't forget that this is an Internet TV, so content resources are also the most valued aspects of the user. After all, buying a network TV is to enjoy high-definition, massive on-demand content, if you just take a look at cable TV, then it might as well buy a traditional television product.

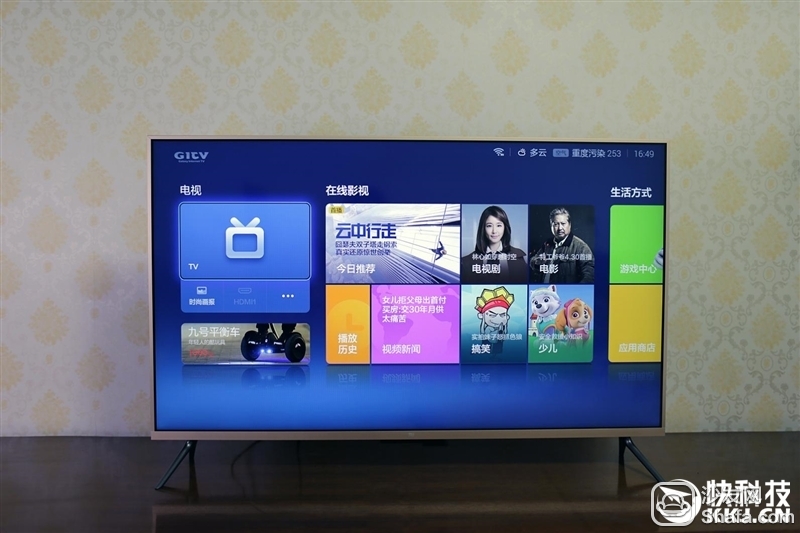

This time, the 48-inch millet TV 3S adopts the same MIUI TV system and online resource platform as the 43-inch version. Therefore, it also covers the four major licensees from GITV, iCNTV, China TV, and Mango TV. A large amount of resources, including more than 8,000 movies, 140,000 episodes, 2,600 variety shows, and sports, documentary, etc., cover almost all popular on-demand resources.
Popular episodes such as "Ode to Joy" and "Challenge 2" and variety shows are also available for free simultaneous viewing. However, there are still some copyright content resources that require payment to be on demand.
Like the 43-inch model, the 48-inch millet TV 3S also provides USB 2.0 and USB 3.0 interfaces, supporting video, music, and picture content stored on an external storage device through system-integrated high-definition player playback. Support 1080p 60fps H.265 10bit hard decoding, while the TV itself also has Dolby, DTS audio double decoding technology, but can not play 2K or 4K ultra high definition image content.
Through the testing of professional player testing software, we found that the compatible video format of Xiaomi TV 3S is very rich and comprehensive. The player and hardware have decoding technologies such as H.265/H.264/H.263/MPEG4/REAL/AVS, and support mainstream video formats including RM/FLV/MOV/AVI/MKV/TS/MP4.
PS: If you still have doubts about the on-demand content or local playback of Xiaomi TV 3S online content, we will certainly be able to help you with this live demonstration of the content resources (Video Portal).
If the previous 43-inch millet TV 3S had a perfect interpretation of the word “practical,†then the 48-inch model added a bit of luxury.
Metal frame with chamfering process, metal brushed backs, and all-metal simple brackets make this TV look even better. Although many people may think that the golden frame will be somewhat different, it will be seen from the actual placement effect. , It can be fully integrated into the modern or luxurious atmosphere of the living room decoration. The eye-catching gold completely surpasses the traditional black dull and silver unadorned in visual effect.
At the same time, the 48-inch Samsung original screen, with a higher static contrast ratio of 4000:1 and up to 22 items of image quality and image enhancement technology, brought a beautiful and delicate viewing experience.
In actual use, the hardware configuration of the quad-core processor with +1 GB of memory is not as unimaginable as possible. On the contrary, with the reasonable optimization of the MIUI TV software, the entire system runs smoothly, such as crash, flashback, and Caton. This maddening situation did not happen at one time, and the support for third-party apps was also very stable. The built-in HD player can perfectly play 1080p HD video content in mainstream formats such as RM/FLV/MOV/AVI/MKV/TS/MP4.
As the content resource of the life of the Internet smart TV, Xiaomi has provided unprecedented content for the users from the four major licensees of GITV, iCNTV (China Internet TV), Hua Digital TV and Mango TV at the same time with the latest cooperation with iqiyi. It includes more than 8,000 movies, 140,000 episodes of TV dramas, 2600 variety shows, and special zone channels such as children's, Dolby, and Blu-ray. It is convenient for users with different special needs.
At present, the official price for this 48-inch millet TV 3S out of 1999 yuan, combined with the entire body design, materials, workmanship and internal performance, content, this TV is still very cost-effective in the same grade products . It is very attractive for young users who just have their own warm nests. Of course, if it is a holiday to buy filial piety, it is believed that the elderly will also smile.
